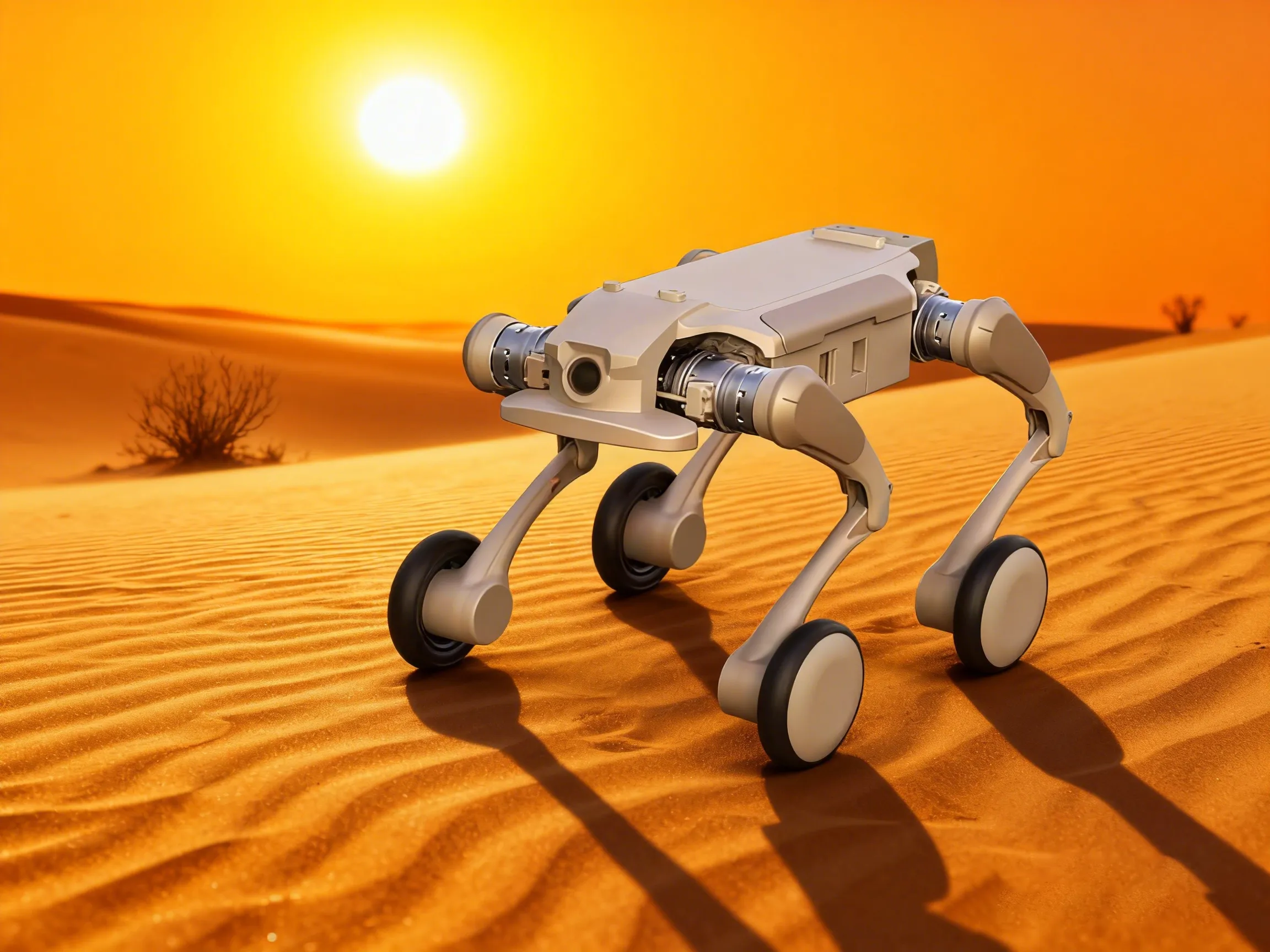

ZSL-1W Small Wheeled Quadruped Robot

Product Introduction

    This compact yet powerful wheeled-bionic Quadruped Robot combines the efficiency of wheeled mobility with the adaptive agility of legged locomotion. Designed for high-speed cruising and reliable obstacle-crossing performance, it excels in a variety of intelligent mobile applications—including security patrols, inspection missions, and assisted navigation in visually impaired environments. Its hybrid wheel-foot design ensures quiet operation, extended endurance, and superior terrain passability. The robot also supports modular expansion through standard interfaces, allowing it to adapt flexibly to diverse and evolving operational settings



Specifications


CategoryDetails
DimensionsStanding: approx. 63 cm (L) × 36 cm (W) × 46.5 cm (H)
Lying: approx. 67 cm (L) × 42.5 cm (W) × 14.5 cm (H)
WeightApprox. 20 kg (including battery)
Battery42 V, 5 Ah nominal capacity
Endurance1–2 hours
RangeUp to 9 km
Max Load≥10 kg (limit ≥12 kg)
Stair ClimbingContinuous step height ≥16 cm
Slope CapabilityStandard: 30°; Extreme: up to 40°
Max SpeedUp to 3.7 m/s (extreme up to 5 m/s)
Obstacle HeightMax climbing height difference ≥65 mm
Operating Temperature0°C to 40°C
IP RatingIP54 (dust and water splash resistant)
Expansion InterfacesEthernet, USB, SBUS, UART, and power ports
